What is Emacs Application Framework?

Emacs Application Framework is a development framework that developers can develop any PyQt program and integrate into Emacs.

This framework mainly implements three functions:

1. Integrate PyQt program window into Emacs Frame using Xlib Reparent technology
2. Listening to EAF buffer's keyboard event flow and controlling the keyboard input of PyQt program via DBus IPC
3. Created a window compositer to make the PyQt program window adapt Emacs's Window/Buffer design

Using this framework, you can use PyQt develop powerful graphics programs to extend Emacs

Screenshots of EAF

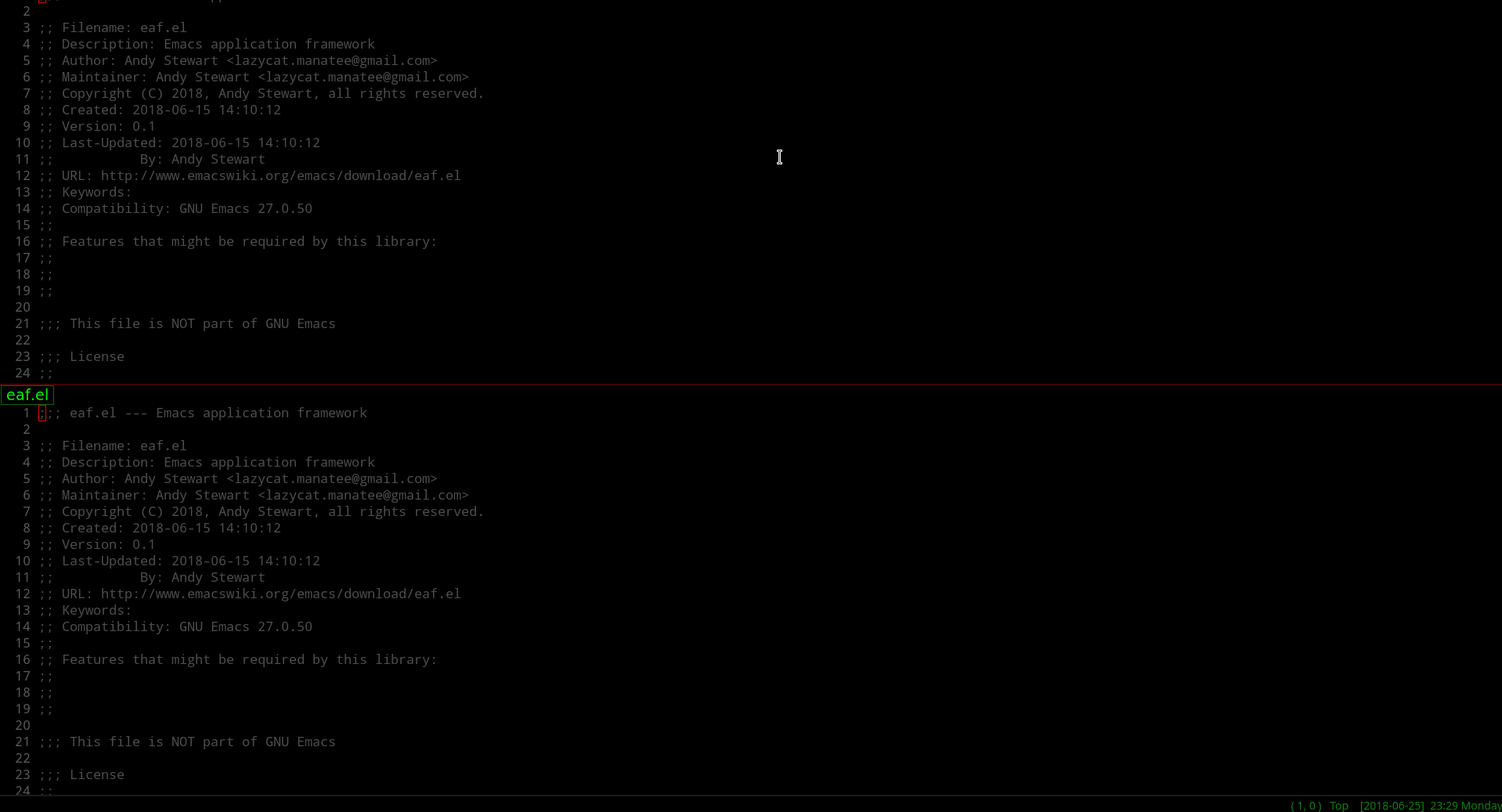

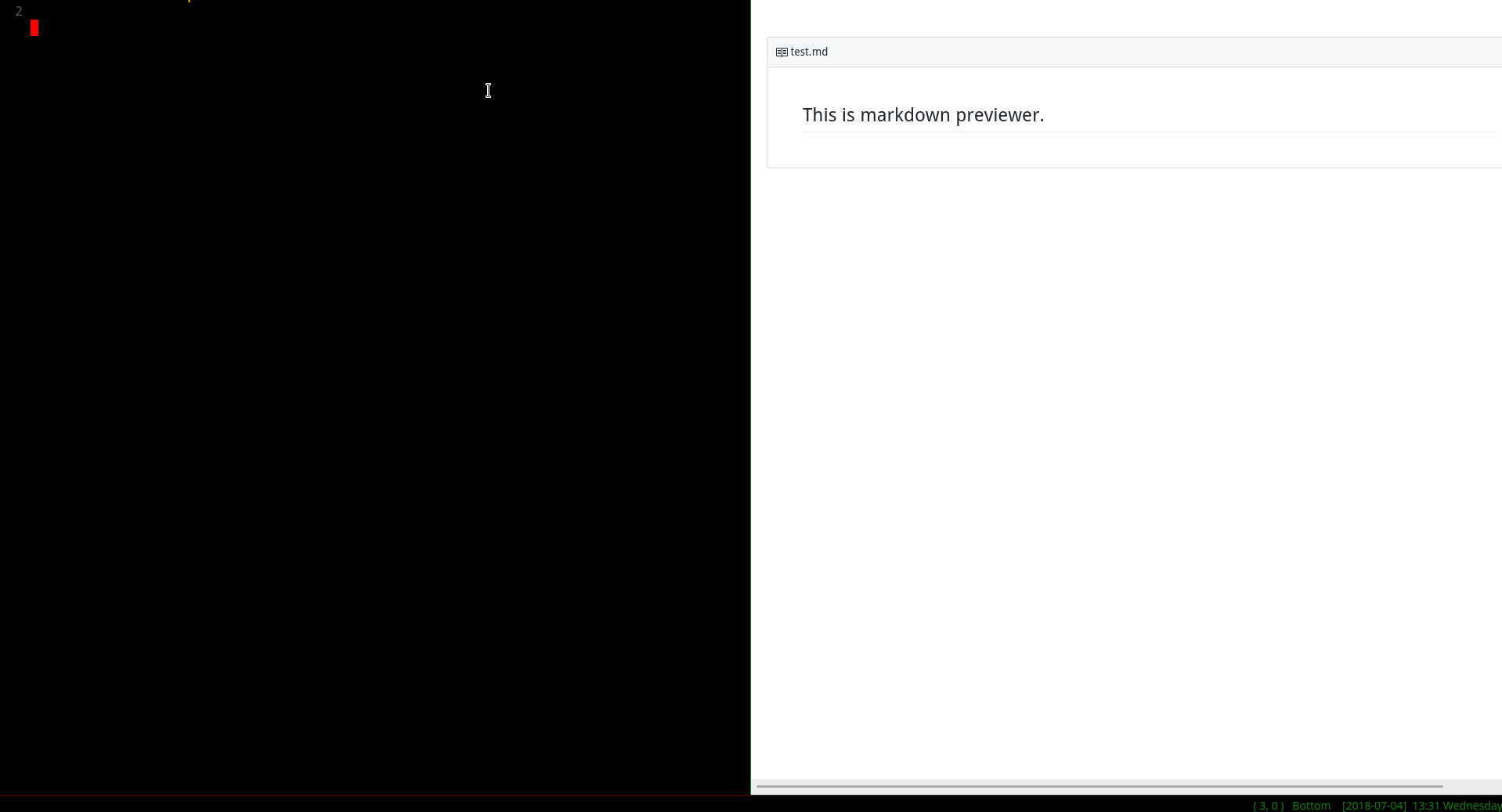

Browser	Markdown Previewer

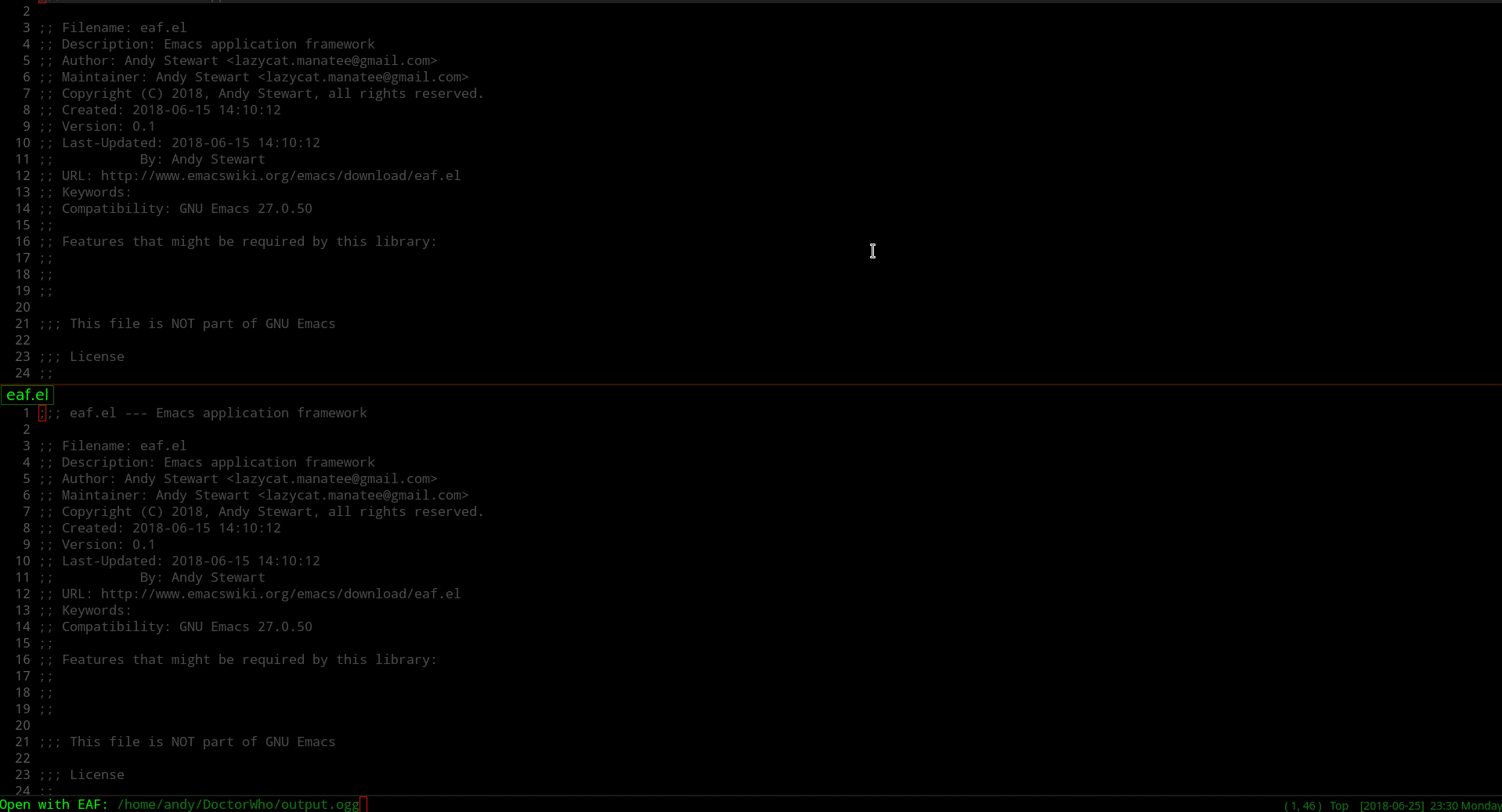

Image Viewer	Video Player

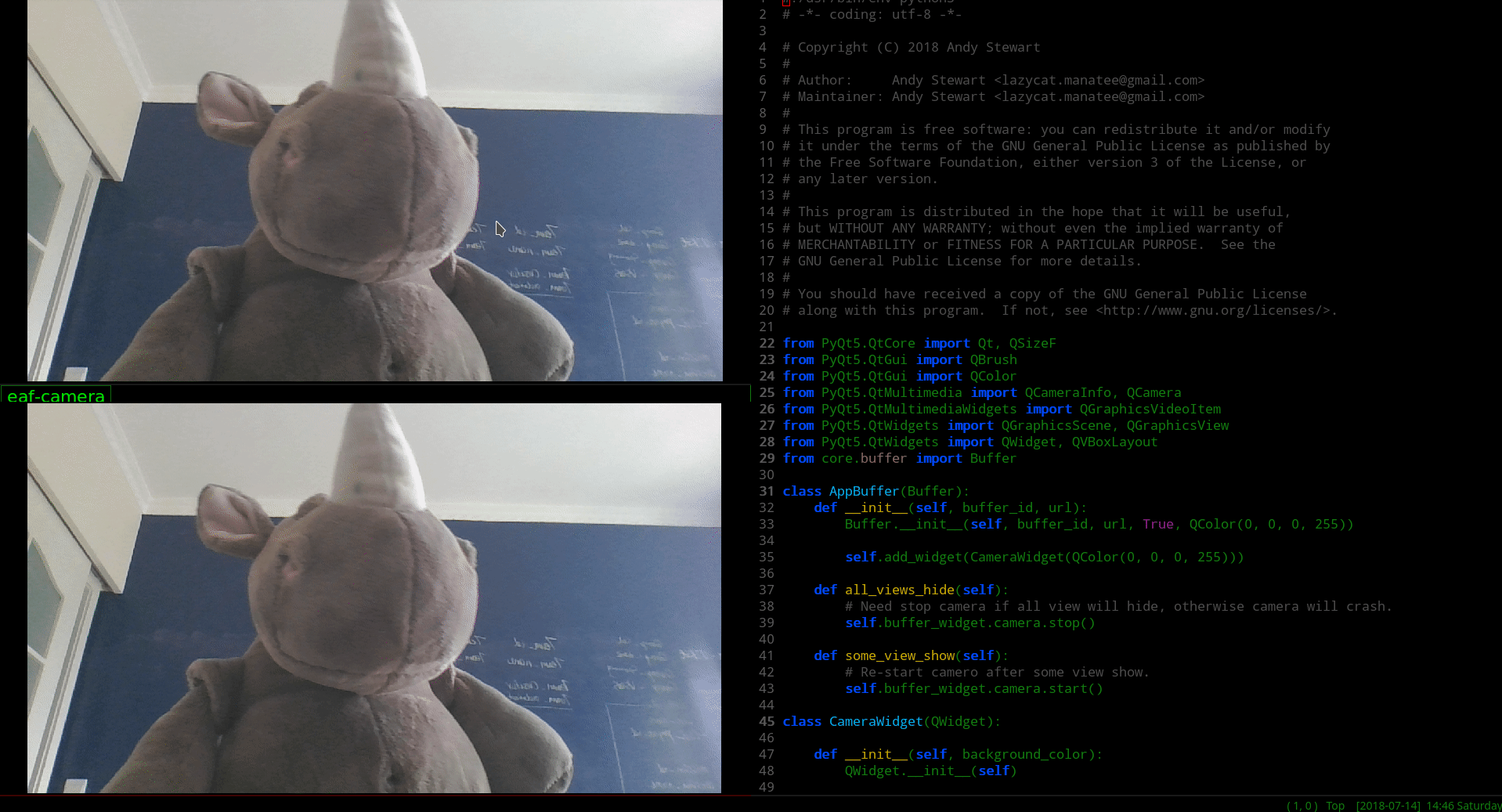

PDF Viewer	Camera

File Transfer	File Uploader

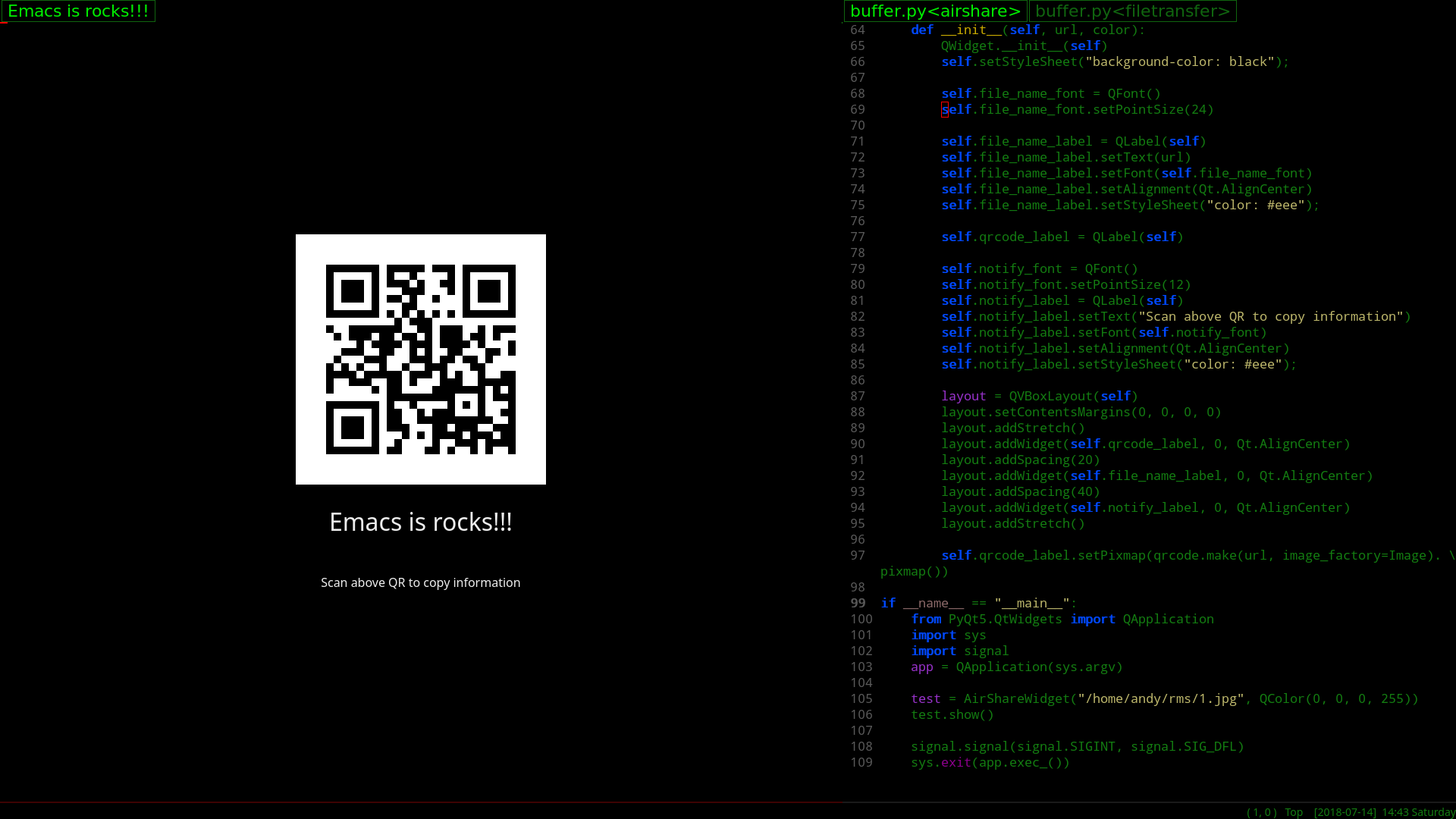

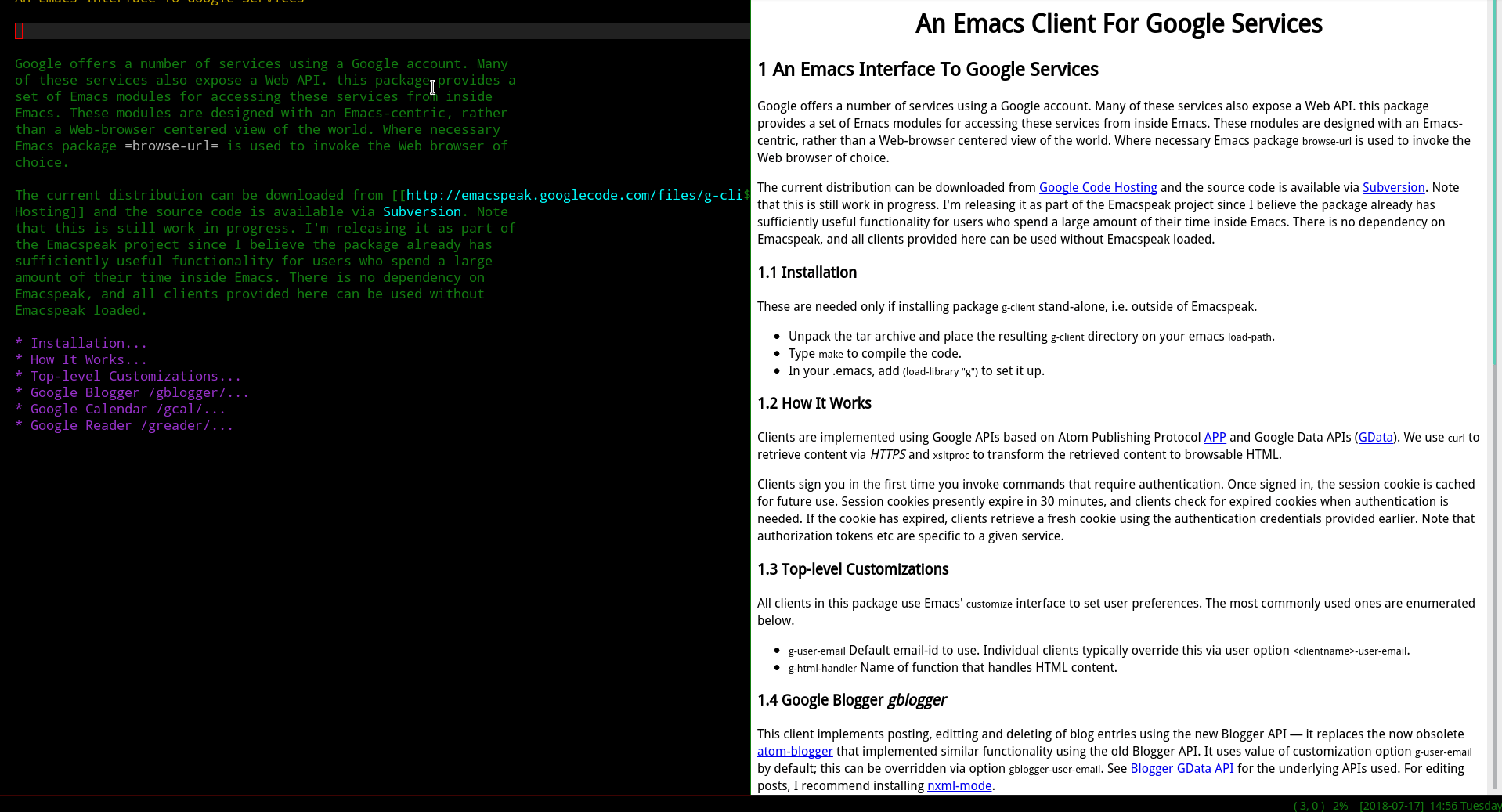

Air Share	Org Previewer

Installation

1. Install python dependences:

Make sure python3 and pip3 has install in your operating system, then execute below command:

sudo pip3 install dbus-python PyMuPDF grip qrcode pyqt5 python-xlib

Package description.

Package	Use for
python-xlib	Stick app window into emacs frame
python-pyqt5	GUI library required for application development
dbus-python	DBus IPC for python and elisp
PyMuPDF	Render engine required for PDF Viewer
grip	Markdown render server for Markdown Previewer
qrcode	Render local file QR code

2. Clone this repository and add below code in your ~/.emacs

(require 'eaf)

Why this awesome framework can't works with MacOS?

There are mainly three obstacles:

1. I can't make dbus/python-dbus works on MacOS High Sierra
2. This framework need use X11 reparent to stick Qt5 window to emacs frame, but i don't know how to make X11 works on MacOS.
3. Qt5 QGraphicsView/QGraphicsScene can't work MacOS, specify QGraphicsVideoItem can't work.

Usage

NOTE:
EAF use DBus' session bus, it must running in general user.
Please don't run EAF with root user, root user just can access DBus's system bus.

App	Way to open	Key	Event
Browser	URL	Left Button	Open link current tab
		Ctrl + Left Button	Open link in new tab
Markdown previewer	Type 'eaf-open' RET markdown filepath
Org file previewer	Type 'eaf-open' RET org filepath
Image Viewer	Type 'eaf-open' RET IMAGE filepath	j	Load next image in current directory
		k	Load previous image in current directory
Video Player	Type 'eaf-open' RET video filepath	Space	Play or Pause
		h	Seek backward
		l	Seek forward
Pdf Viewer	Type 'eaf-open' RET PDF filepath	j	Scroll up
		k	Scroll down
		Space	Scroll up page
		b	Scroll down page
		,	Scroll to end
		.	Scroll to home
		t	Switch scale mode
		-	Zoom out
		=	Zoom in
		0	Zoomn reset
		g	Goto page
Camera	Type 'eaf-camera'
Demo	Type 'eaf-demo'
File Transfer	Type 'eaf-show-file-qrcode'
	Or use `dired-show-file-qrcode' in dired mode
File Uploader	Type 'eaf-upload-file'
Air Share	Type 'eaf-air-share'

Report bug

If you have any problem with eaf, please use command "emacs -Q" start Emacs first.

Then test again, if "emacs -Q" works fine, it's must be something wrong with your emacs config file.

If "emacs -Q" still have problem, please report bug

Join Us

Do you want to make Emacs a real operating system?

Do you want to live in emacs more comfortably?

Want to create unparalleled plugins to extend emacs?

Let's hacking together!
